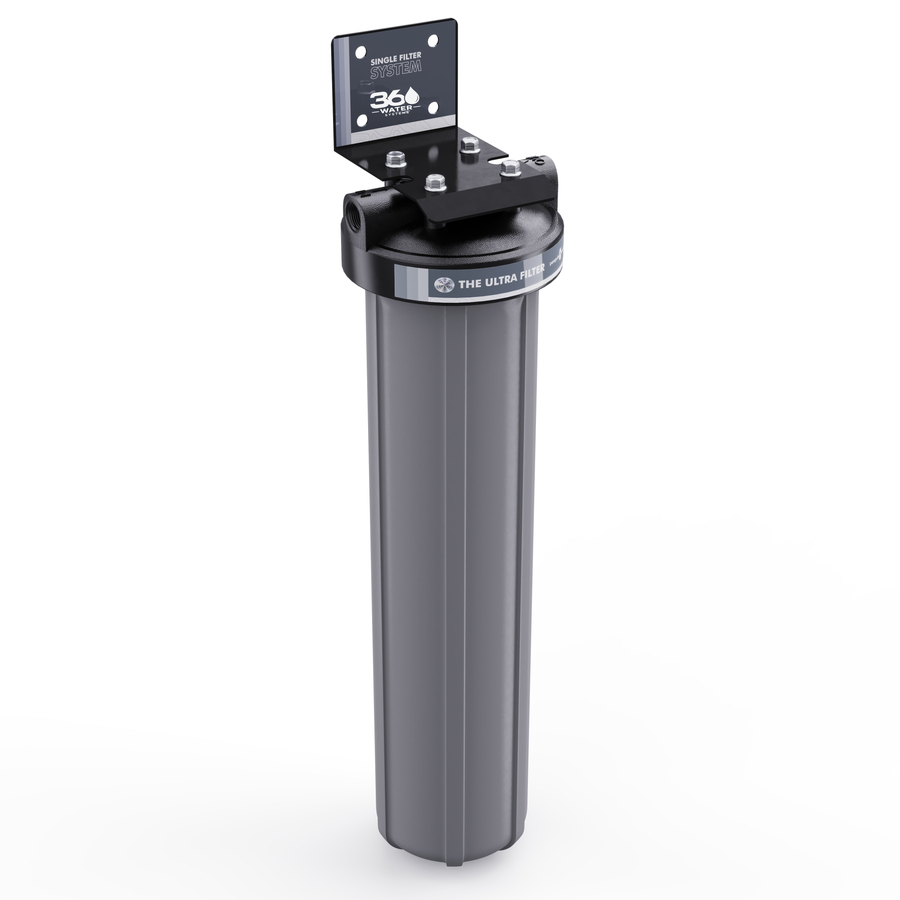

360 Ultra Filter 4.5x20
SKU PW-FILT-4520-0.5
Overview
About this system
The 360 Ultra Filter 4.5x20 is a heavy-duty sediment pre-filter built for well water and whole-home protection. It sits ahead of your softener or hybrid system and captures sand, silt, rust, and sediment before they reach your downstream media, so your equipment lasts longer and your water runs clearer. Built to last, and friendly to install yourself.
Built to Last
- Durable 4.5 in x 20 in housing. Engineered for high-flow, whole-home use.
- Brass port inserts. Leak-free connections and long-term reliability where cheap plastic threads fail.
- Heavy-gauge steel mounting bracket. A solid, permanent mount, not flimsy plastic.
- High-strength polymer sump. A tough filter housing that stands up to years of service.
- Positive-seating O-ring seal. Seals the cartridge to the housing so water cannot slip past unfiltered.
How It Performs
- Pleated polyester cartridges. A large pleated surface area captures more sediment and runs far longer between changes than a spun filter, often six months or more.
- True high-flow performance. Handles whole-home demand up to 25 GPM, so pressure stays strong when several fixtures run at once.
- Choose your micron rating. Select from 0.5 to 20 micron to match your water. Finer ratings capture the smallest silt, and coarser ratings maximize flow and cartridge life.
- Made for well water. Ideal for capturing sand, silt, rust, and sediment, and it pairs perfectly ahead of a softener or hybrid system for clearer water and better protection.
Easy to Install and Service
Engineered for the DIY homeowner. Mount the heavy-gauge bracket, connect the 1 inch ports, and apply the included O-ring grease for a clean seal and zero leaks at startup. There is no pressure-relief button to fail over time. To service, close the inlet, open a downstream faucet to relieve pressure, then use the included wrench to twist off the sump. Cartridge changes take about five minutes.
Specifications
| Specification | Detail |
|---|---|
| Peak Flow Rate | 25 GPM |
| Housing | 4.5 in x 20 in, high-flow |
| Filter Media | Pleated polyester cartridge with large surface area (up to 36 sq ft) |
| Micron Options | 0.5, 1, 5, and 20 micron (by selection) |
| Cartridge Life | Up to 6 months or more, depending on sediment load |
| Temperature Rating | 40°F to 125°F (water temperature) |
| Port / Pipe Size | 1 in FNPT |
| Max Working Pressure | 90 psi (100 PSID max differential) |
| Mounting | Heavy-gauge steel bracket, 5/16 in x 1 in screws |
| Service Clearance | 4 to 5 in beneath the sump |
| In the Box | Mounting bracket, screws, housing wrench, and O-ring grease |
| Warranty | Lifetime limited warranty |
Pairs Well With
Sediment pre-filtration is the first stage of a clean whole-home setup.
- 360 Dual-Stage Ultra Cartridge System. Sediment plus carbon in one housing, adding chlorine, taste, and odor reduction downstream.
- 360 Backwashing Carbon Filter. Whole-home chlorine and chloramine reduction with no cartridges to change.
- 360 SmartTech Water Softener. Pair clean sediment capture with true whole-home softening to stop scale for good.
Questions
Frequently asked questions
Is the temperature rating for the water or the surrounding air?
It is primarily the water temperature flowing through the housing and cartridge, which is the fluid temperature rating.
Can it handle about 150 degrees F ambient in a hot garage?
The 360 Ultra Filter and its cartridges are rated for 40 to 125 degrees F. An environment reaching about 150 degrees F ambient exceeds the published rating. Even on cold water only, we cannot recommend installing it somewhere that hot unless it is placed in a cooler, temperature-controlled location.
What are the replacement cartridges for the 4.5x20?
The replacements are 222-seal, Magna-style pleated polyester cartridges. Micron options and SKUs:
- 0.5 micron: 361-USP-MF-4520-0.5-222
- 1 micron: 361-USP-MF-4520-01-222
- 5 micron: 361-USP-MF-4520-05-222
- 20 micron: 361-USP-MF-4520-20-222
Does the housing have a pressure-relief button?
No. The 360 Ultra Filter does not include a pressure-relief button. Those buttons are a common leak point over time, so the design leaves them off for long-term reliability. To relieve pressure safely: close the inlet valve to the filter, open a downstream faucet or drain valve to drop pressure to zero, then loosen the housing slowly to service the filter.
What size screws mount the bracket? Are they lag screws?
The screws that mount the housing to the bracket are 5/16 inch by 1 inch.
How long does it last compared to a standard 10x4.5 25-micron filter?
Standard 10x4.5 25-micron filters often last about 30 days. The 360 Ultra Filter uses pleated polyester media with much greater surface area, so it can last six months or more, depending on sediment load and water usage. Adding a coarse spin-down pre-filter upstream can extend it even further.
How much clearance is needed under a 20 inch housing to change filters?
Allow 4 to 5 inches of clearance beneath the sump for comfortable filter changes.
Is a 20-micron filter okay for sediment?
Yes. A 20-micron cartridge works well for larger sediment such as sand and silt. For finer sediment, choose a 5, 1, or 0.5 micron cartridge.
